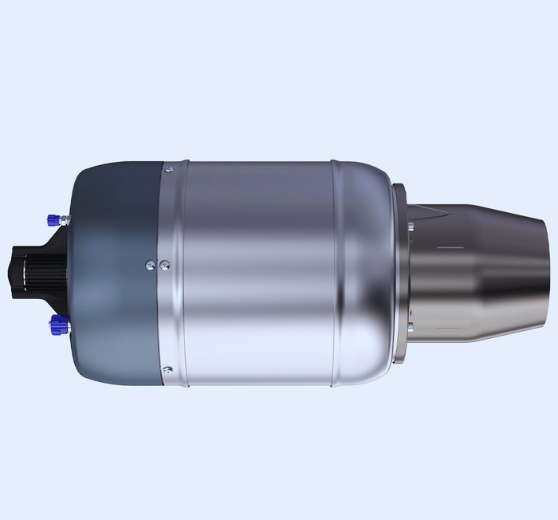

JetCat-PRO Engines Functions - Integrated Engine-Sided Components:
- ECU (Electronic Control Unit) for full engine management
- Integrated brushless fuel pump
- Fuel and kerosene start solenoids
- Post fuel filter
- Kerosene starter
- Barometric altitude/pressure sensor
- 4-pin Molex expansion connector (for smoke pump, fuel pump, or GSU)
- Optional bleed-air port with integrated one-way valve for fuel system pressurization
- Power supply via 3-cell LiPo / XT60 connection, minimum 3000mAh
Data Connector and Control Options:
- 1x PowerOn control signal
- 2x PWM input channels for RC control (THR / AUX)
- 2x independent RS232 interfaces for computer remote control or multi-turbine interconnection
- 1x Analog voltage regulation / sensor input
- 1x JetCat bus interface for GSU or other JetCat accessories (LCU, flow sensor, BMS system, etc.)
- CAN bus interface for control and data reporting
Starter and Generator Versions:
- Standard Starter Version: Pro-S with low-wear brushless starter and new starter clutch insensitive to oil film
- Generator Version PRO-GL: Soft-coupled brushless starter/generator with integrated DC/DC converter, providing ~85W charging at idle
- Generator Version PRO-GH: Hard-coupled brushless starter/generator providing up to 900W output with unregulated 3-phase AC supply; DC voltage varies with turbine speed (e.g., 12V / 7.5A @ 33,000 rpm, 35V / 22A @ 100,000 rpm)
